APR Carbon Intake System – SQ7, SQ8, RSQ8 4.0T
APR's 4.0T EA825 V8 Intake System for SUV models provides an OEM+ appearance upgrade with a single-body carbon fibre intake...
Total Fitted Price:
£1,116.77
Fitting Service
Our current estimated fitting lead time at our branches:
Cambridge
Estimated Fitting Lead Time:
3 Weeks
Peterborough
Estimated Fitting Lead Time:
2 Week
St Ives
Estimated Fitting Lead Time:
4 Weeks
Description
Vehicle Fitment
Fitting Service
Hardware Required
Contact Us
Description

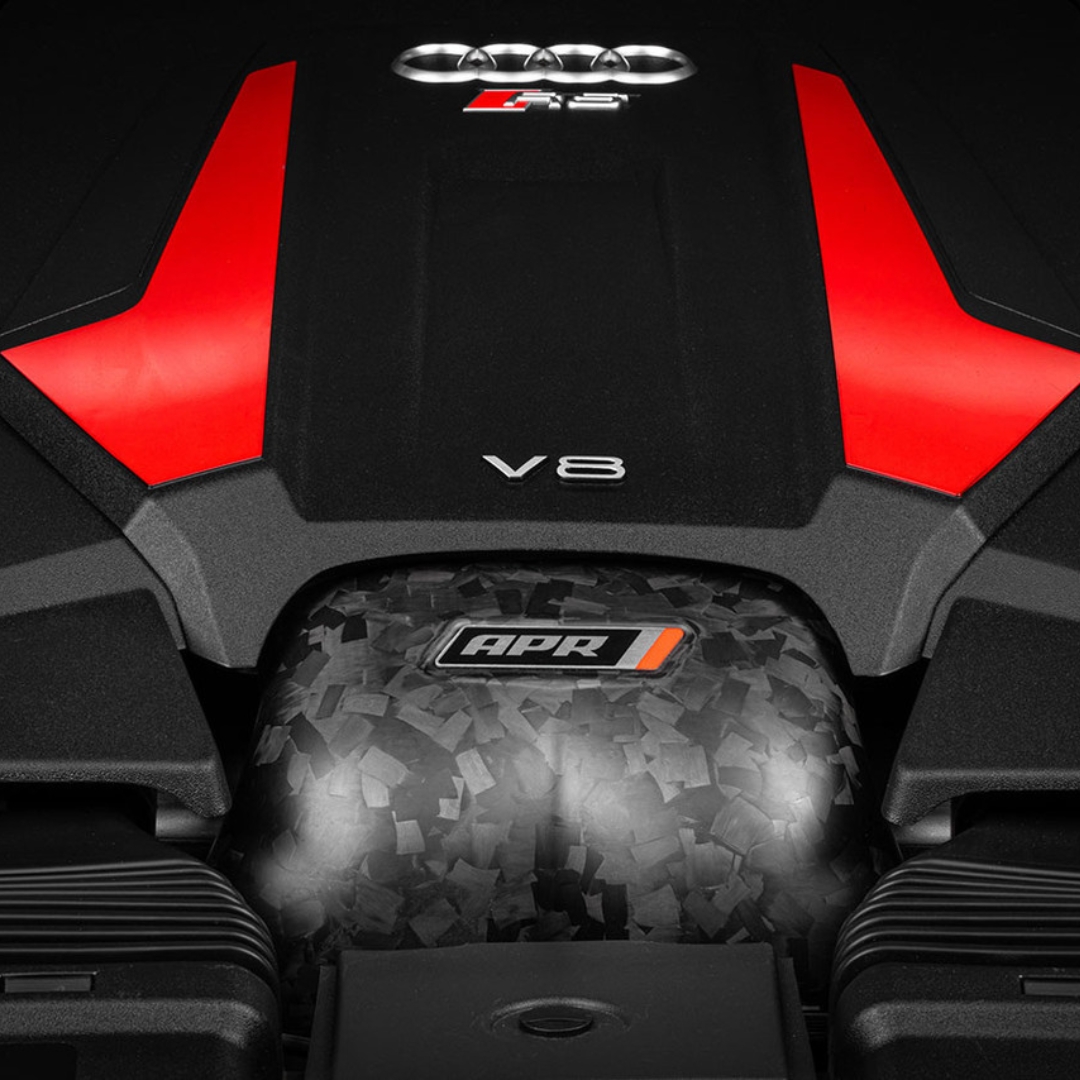

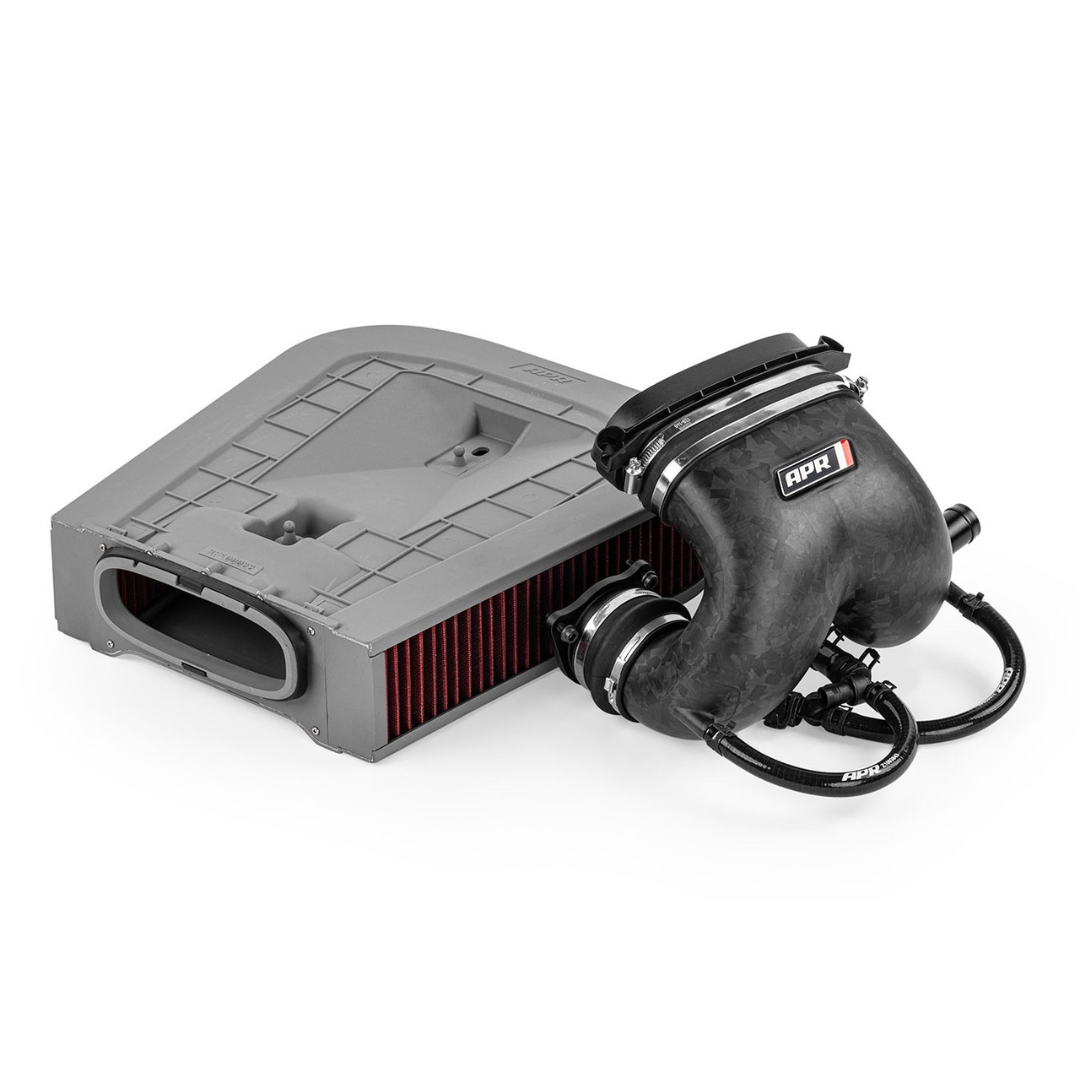

APR’s 4.0T EA825 V8 Intake System for SUV models provides an OEM+ appearance upgrade with a single-body carbon fibre intake plenum in a gorgeous matte forged carbon finish that flows up to 22% more than stock. Enhanced turbocharger inlets feature bell mouth profile into the factory turbocharger to promote flow and allow for easily upgrading turbos in the future.
The system features a proprietary performance intake filter with a high flow cotton gauze filtration material and flow-bench optimised design that enhances airflow through the system and into the intake plenum. The filter flows up to 12% more than stock and sees reduced pressure drop at the same flow rates. This puts less strain on the turbochargers, and maximises performance, all while sharpening throttle and turbocharger response. This is the ultimate intake for the 4.0T EA825 V8 engine!
The design of the 4.0T SUV’s engine bay design is tight. The factory utilises a dual inlet design that feeds into an airbox placed under the intake filter cover which feeds into a multi part turbocharger plenum. Airflow is directed 180 degrees into turbo inlet adapters and into both turbochargers. The intake filter was optimised on the flow bench to provide the maximum amount of flow while utilising a filter media that provided adequate filtration and extended filter life.

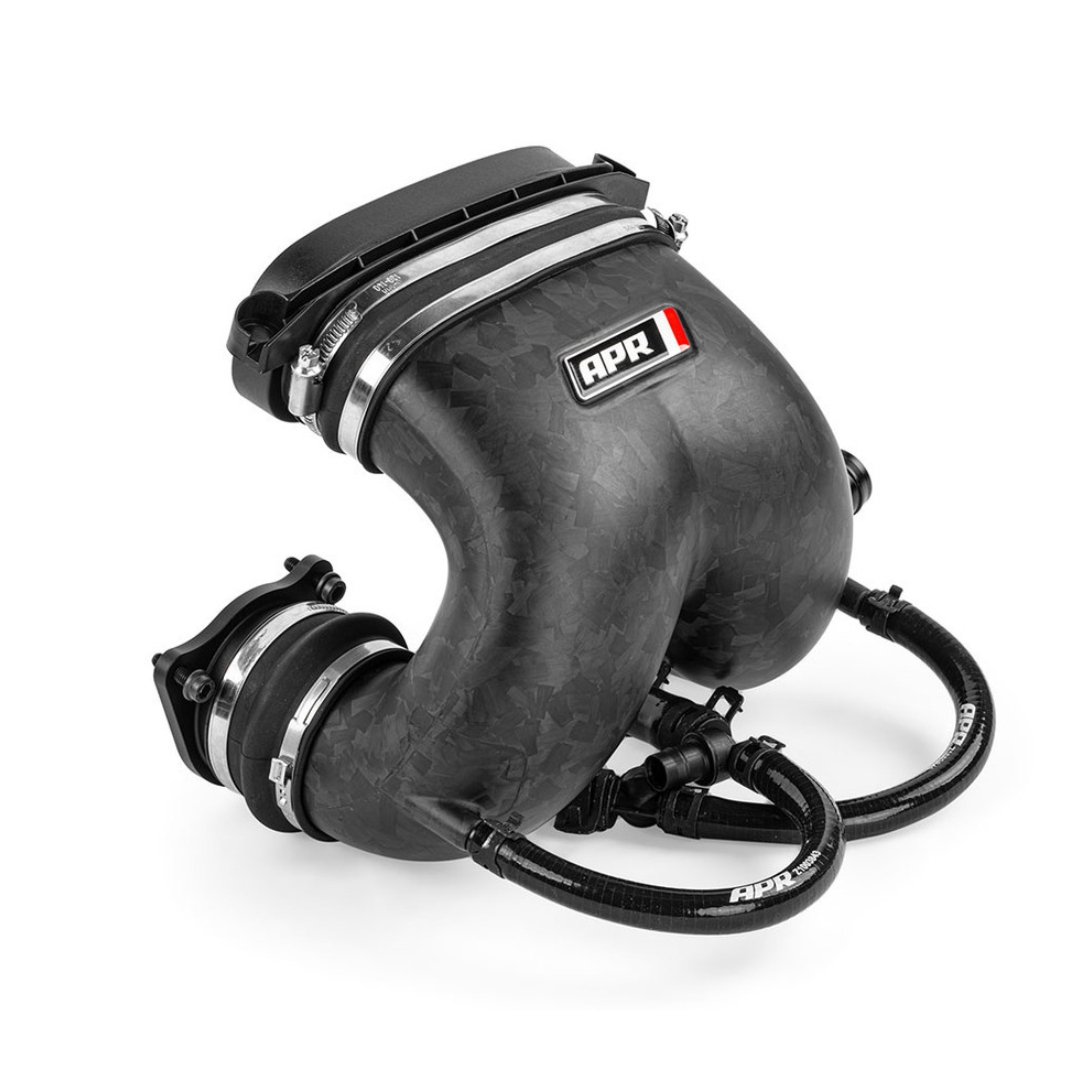

The overall shape and design of the filter looks similar to the factory unit, due to its location, but internally features several enhancements to provide increased airflow beyond changing filter media alone. Next the turbocharger plenum was upgraded. The factory plenum is tiny and features a flow restricting split-body design. We did away with this and made ours a large and organically shaped single-body design to promote airflow. Carbon fibre was used not only because it looks great, but it allows for thin walls and complex geometry to maximise cross sectional area. This aids in airflow and reduces pressure drop. The plenum is dramatically larger than the factory unit in various areas and is a single-piece design that extends past the integrated PCV and EVAP bungs, and runs all the way down to new billet aluminum high flow turbocharger inlets.
The billet aluminum turbocharger inlets feature bell mouth profile to promote airflow. If upgrading to larger turbochargers, the inlets can be modified or replaced to match the compressor cover on the new turbochargers. Furthermore, this system integrates PCV and EVAP bungs for a smooth install. New EVAP jet pumps were created and supplied for proper emission controls. All of these improvements result in an upgrade that’s worthy to grace the 4.0T’s engine bay. The intake system lets the engine breathe more freely to maximise performance and gives a subtle but enhanced engine note that’s sure to delight the decerning ear! Go APR!
Features:
- System flows up to 22% more than stock
- Filter flows up to 12% more than stock
- Less pressure drop than stock at the same flow rates
- Maximises performance while sharpening throttle and turbo response
- Carbon fibre single-body intake plenum in matte forged carbon
- Washable and reusable cotton gauze filter material
- Billet aluminum turbocharger inlets with bell mouth profiles
- Billet aluminum integrated PCV bungs
- Integrated EVAP bungs with new EVAP jet pumps
- Flow-bench optimised filter and plenum design
- Enhanced engine and turbocharger sounds
- Gorgeous organically shaped design
- Works at any stage of performance
- Allows for easily upgrading to larger turbochargers
- Emissions friendly
Vehicle Fitment
Vehicle Fitment for this product
Please be aware, this list of compatible vehicles is taken from data provided by the supplier. It is recommended, if you’re unsure, to contact us first before placing an order.
Fitting Service
We’re providing you with an all in one, supply and fit, performance parts solution which is facilitated by our network of trusted, reputable Quattro-Tech sites across Cambridgeshire.
Any products ordered will be delivered to your chosen Quattro-Tech site at checkout for fitment.
A member of our team will be in touch with you directly, via phone or email, once you have completed your order to discuss a date and time for fitment at your chosen site location.
You will then receive an order confirmation email with the full details of your’ booking, including parts ordered, site location, date and time.
ORDER, ARRIVE AND DRIVE.
Hardware Required
No specific hardware requirements listed.
