Fiamma F45S Awning – VW Transporter

The Fiamma F45S is by far Europe’s most popular box awning thanks to its ease of use, superior quality and features and extensive range of accessories. The F45S is a wind-out awning with automatically extending arms and drop down legs which fold within the awning case. It’s a great way to allow you to rapidly set up a simple canopy offering sun shade or rain shelter over a large area next to your campervan or motorhome.

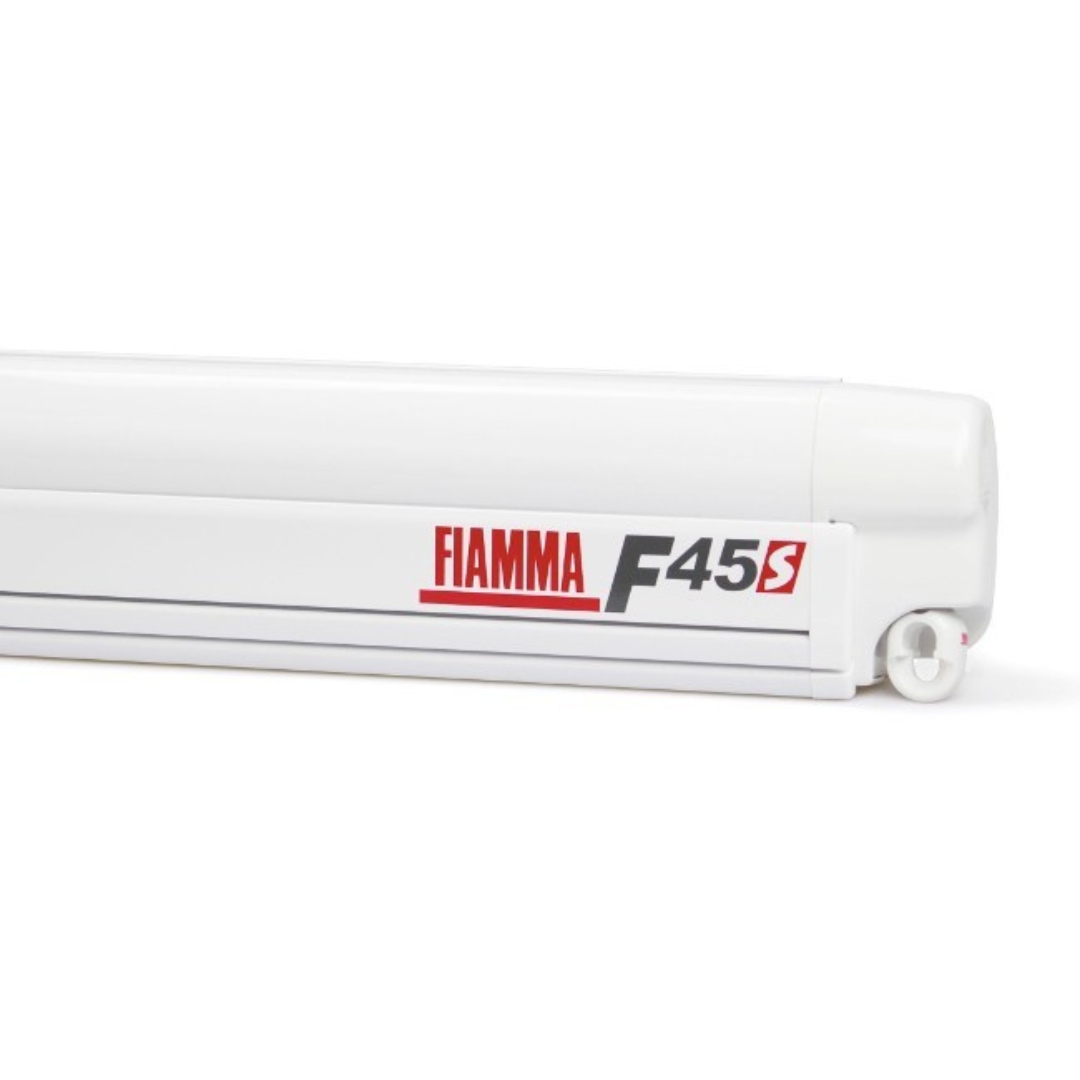

This version with Polar White case is available in lengths from 1.9m to 4.5m long to suit all sizes of vehicle and most lengths give the option to add side or front panels, or a even a complete Privacy Room enclosure. The Fiamma F45S awning is delivered with a standard installation kit for bolt-through-wall installation on most coach-built motorhomes but there are also an extensive range of specialist adapter kits for other vehicles.

Fiamma F45S Canopy Fabric

The Fiamma F45S canopy fabric is multi-layered, washable, ultra-resistant, flame retardant and is patterned on both sides. The light reflective properties of the canopy keep it cool in warmer climates and make it resistant to fading caused by UV sunlight. The seemless construction of the canopy increases performance and gives it greater resistance to tears caused by sudden winds. Packing away the Fiamma F45S awning when wet is no problem, as the canopy is rot-proof (air out as soon as possible). The F45S canopy is finished in attractive Royal Grey and Royal Blue.

Auto Lock & Dual Security

The only awning with silent opening thanks to Auto-Lock self-locking winch safety system. With exclusive long life Aluminium mechanical parts, it offers a quality product vastly superior to other comparable noisy hook and release mechanisms from other brands.

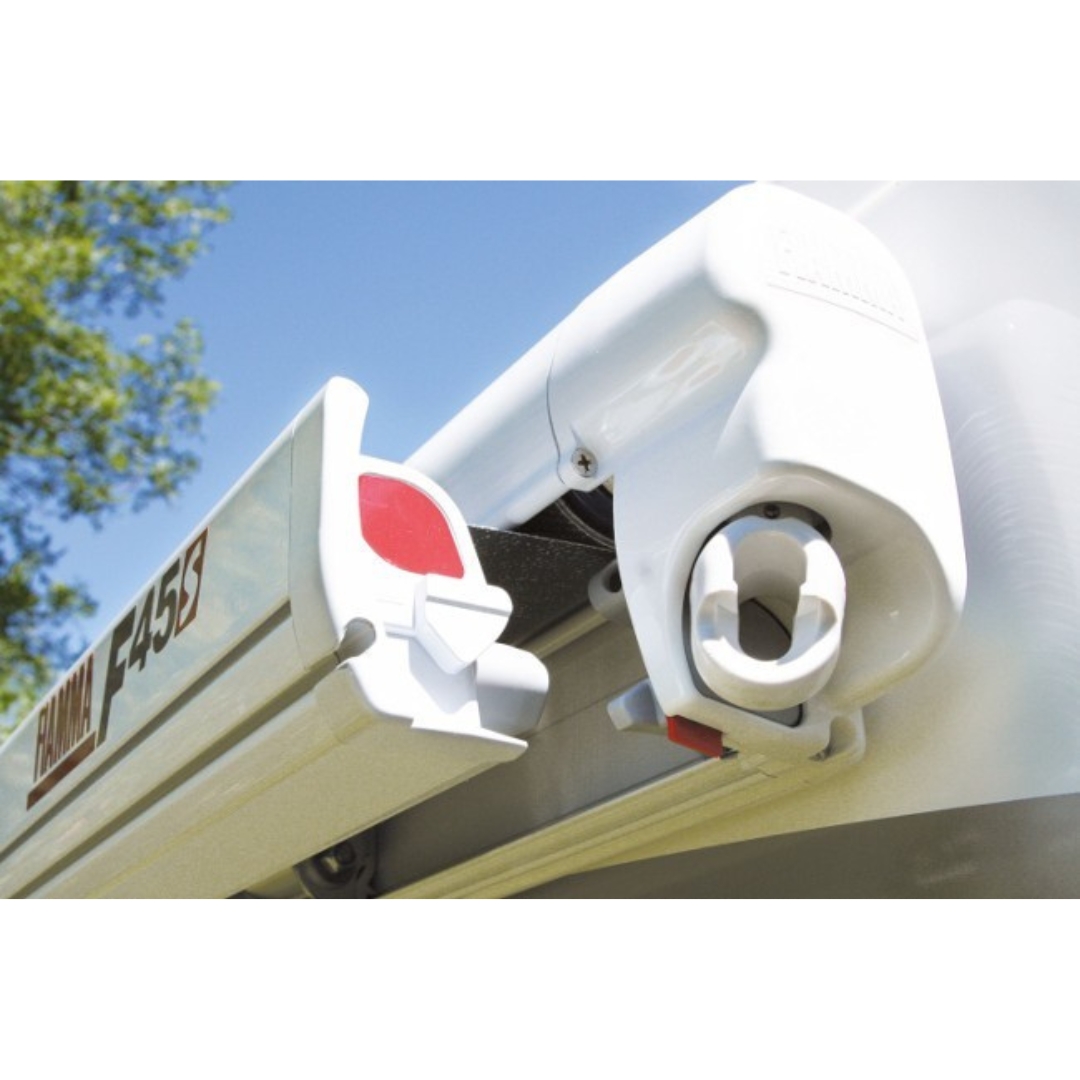

The Dual Security system has indicators at both ends of the awning case to clearly show that the awning is correctly and securely closed before travelling.

Presto Fix

The Fiamma awning is the only awning with patented adjusting system that enables you to adjust the closing of the front bar. Over a period of time the tension in the canopy fabric or awning arms may change. Presto Fix allows you to realign the closing of the front bar ensuring a long awning life.

One Way Roll

Some awning brands allow you to roll the canvas the wrong way around the roller tube leading to the awning not closing properly. You have to unwind and then rewind your awning correctly. The Fiamma awning mechanism prevents the canvas from ever retracting the wrong side of the roller tube so you awning always closes properly.

Shock Absorber

Dual shock absorber protects both the awning and your vehicle by absorbing vibration and wind impact preventing the force being transferred to the awning case or vehicle wall.

Extra Strong Arms

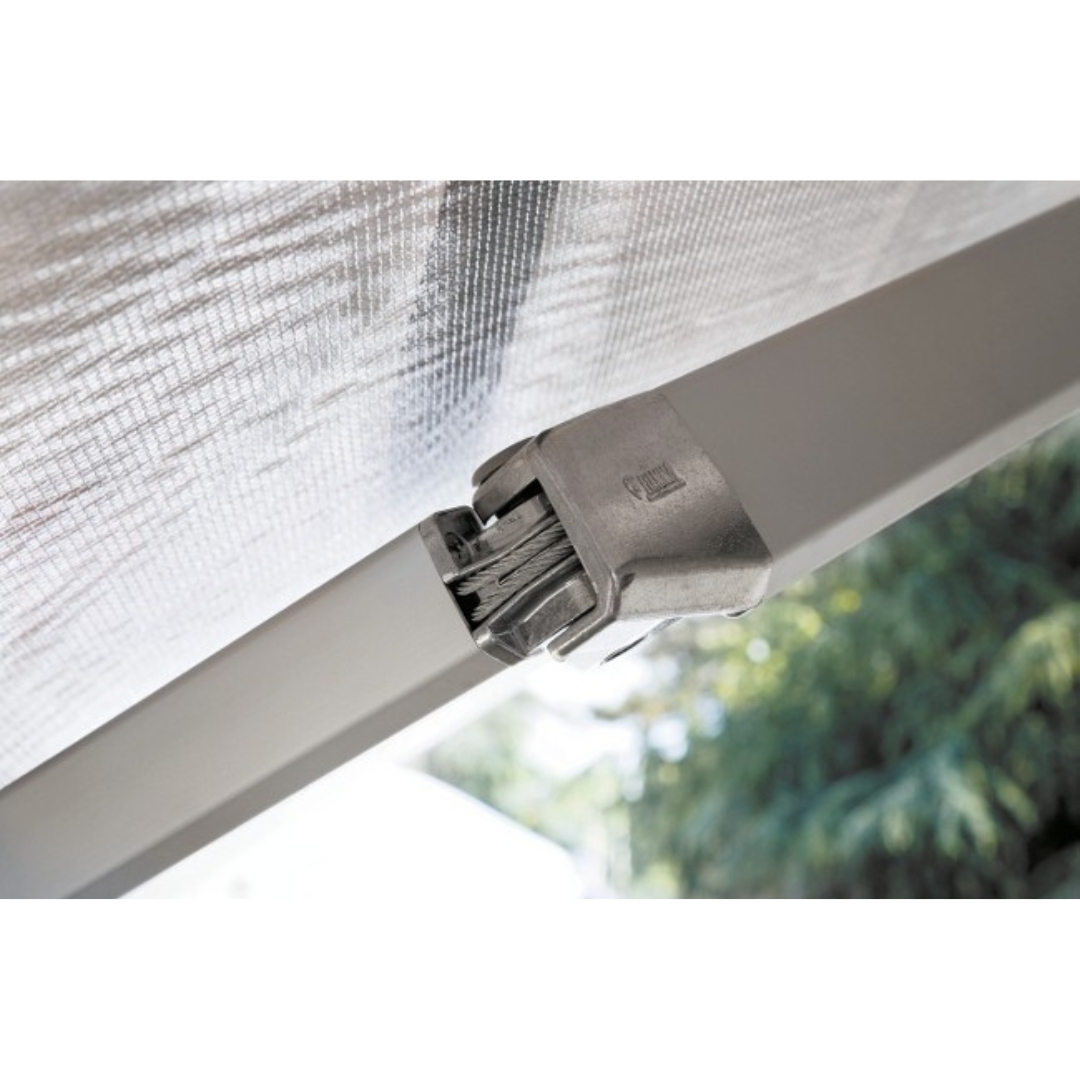

Highly resistant reinforced articulated arms with strong 3.5mm wire cables. Arms are proof tested for more than 10,000 cycles of opening and closing the awning. How many times will you use yours?

Double Lead Bar Guide

Fiamma F45 S awning is equipped with double guide on the lead bar to allow fitting of front panels, shades and a range of useful accessories.

Secure Lock and Wall Mount Option

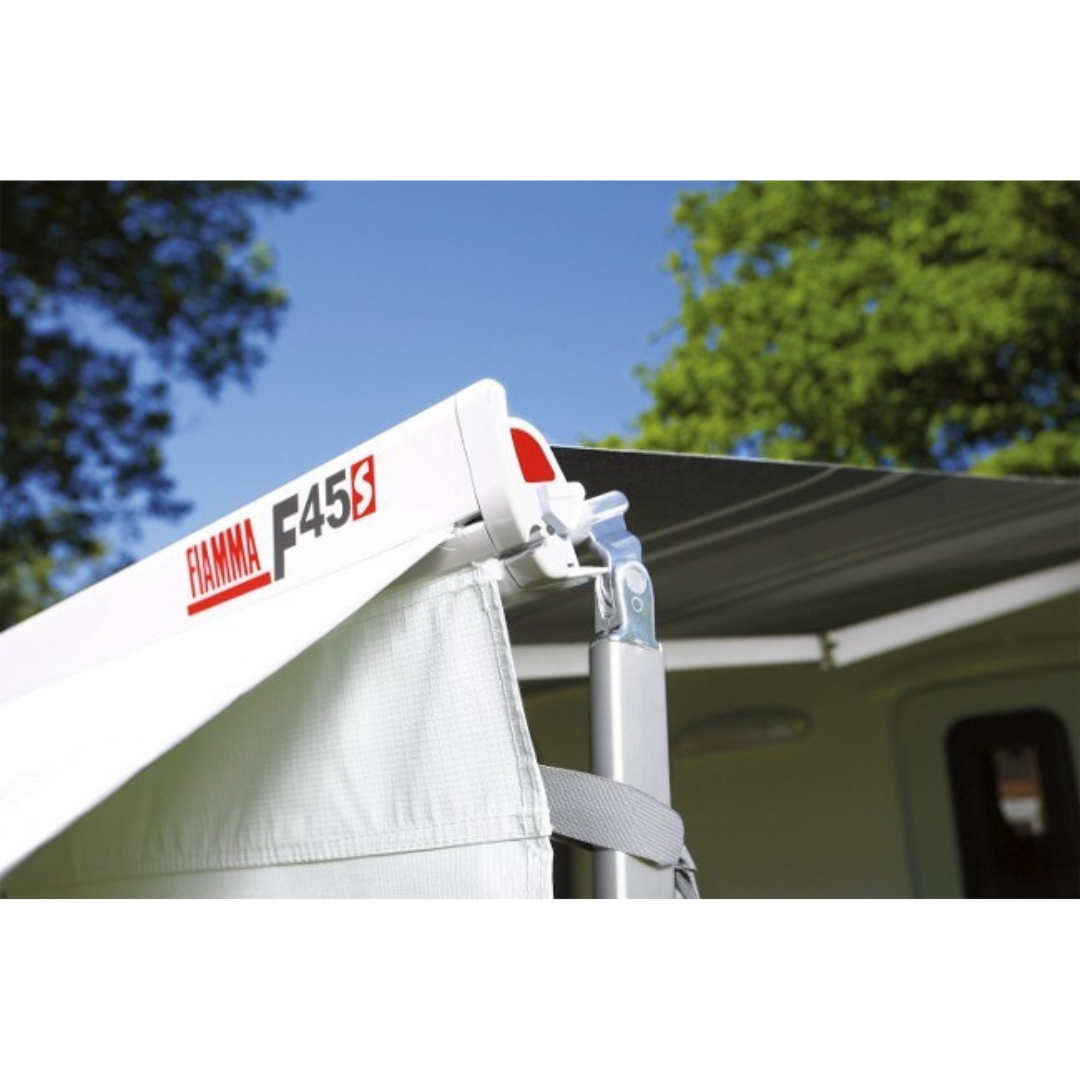

Telescopic awning legs lock securely and allow easy adjustment of lead bar height and angle to accommodate rain run off. You also have a wall mount option for the awning legs which can be used on most motorhomes and campervans.

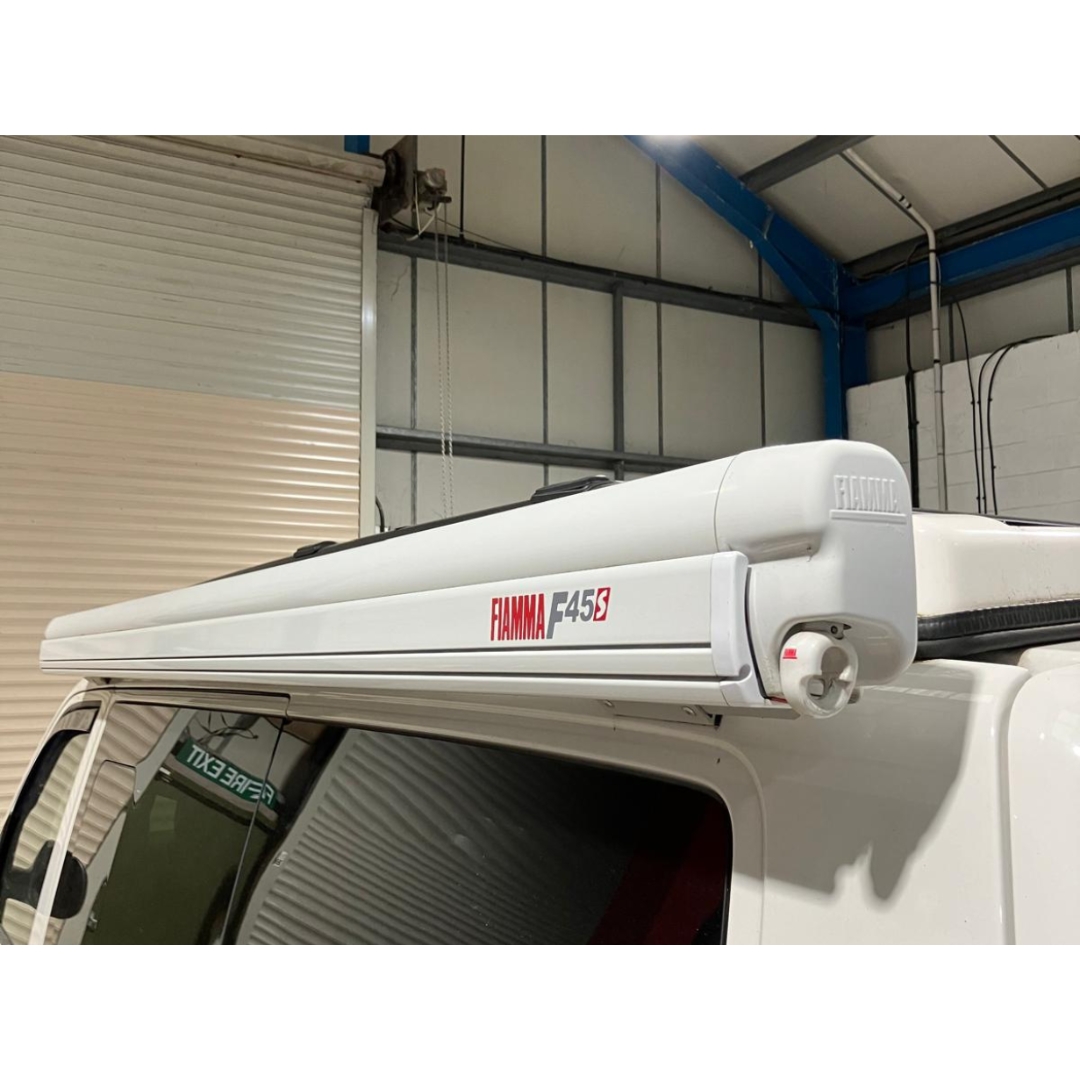

Adaptable fitting kit to mount Fiamma F45 awning to Vamoose Combi Rail and a variety of other moulded awning rails including Reimo Multi-Rail and Brandrup Top-Rail.

Kit consists of 2 x black powder coated brackets with all required fixings and general instructions.

Combi Rail kit adjusts for awning height and angle so you can raise the bracket / awning to give better clearance above your sliding door, and adjust the angle of the bracket to match the angle of your awning rail.

This kit fits around the moulded awning rail and is secured to the van roof with Rivnuts. this requires drilling the van roof. Rivnuts are provided with the fitting kit.

Vehicle Fitment for this product

Please be aware, this list of compatible vehicles is taken from data provided by the supplier. It is recommended, if you’re unsure, to contact us first before placing an order.
