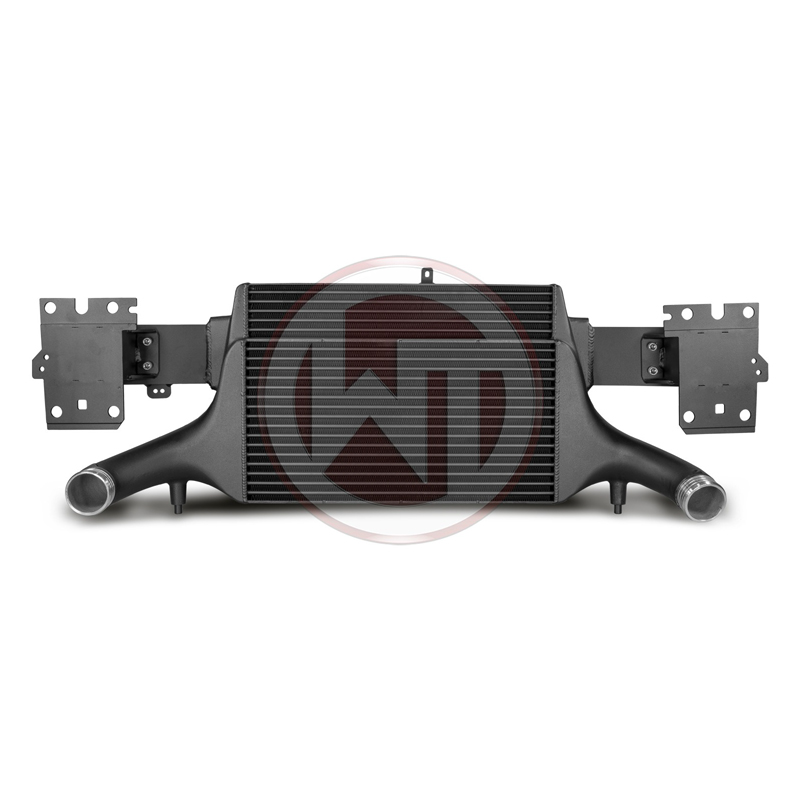

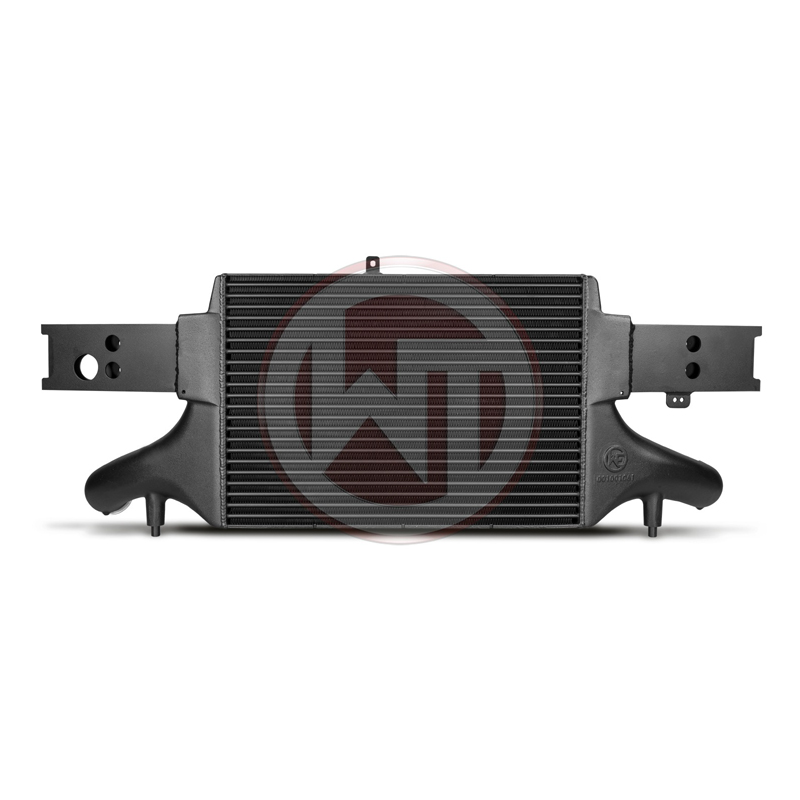

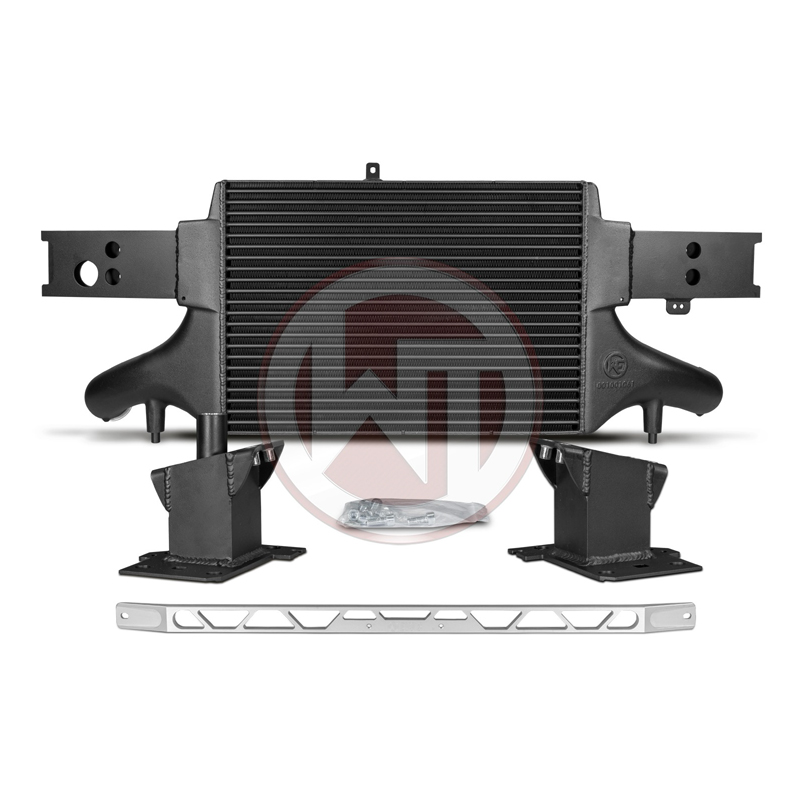

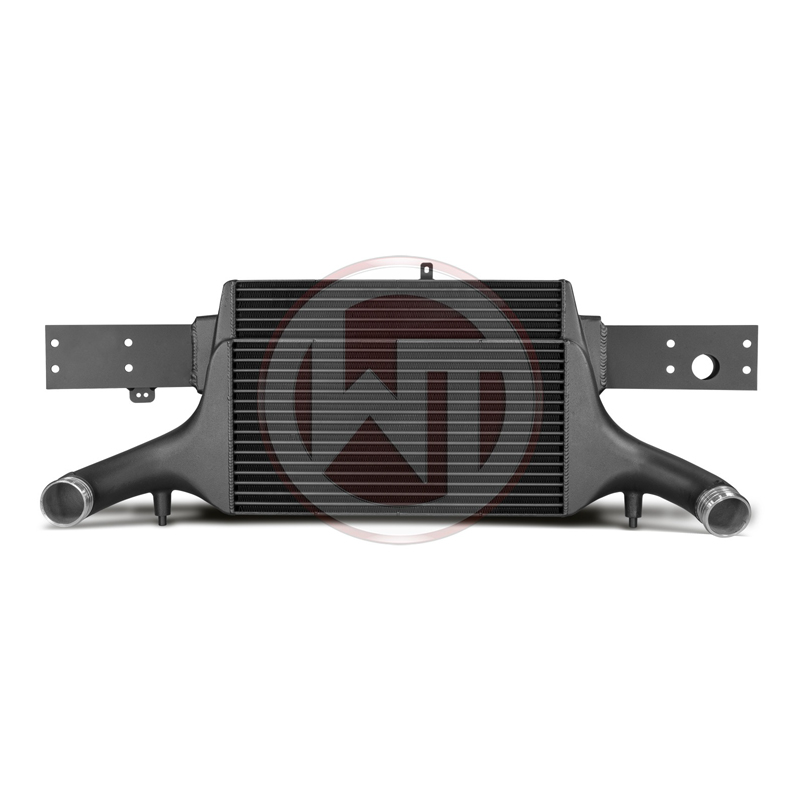

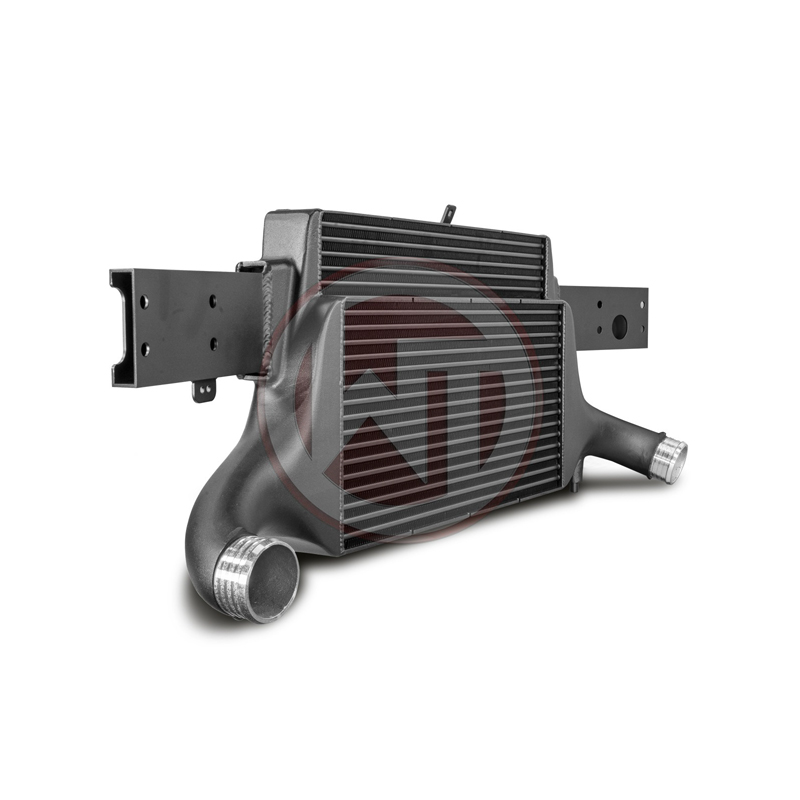

Wagner Tuning – Audi RS3 8V EVO3.X 600HP+ Competition Intercooler Kit (For Vehicles With Adaptive Cruise Control) – 200001081.ACC.X

Audi RS3 8V Sportback 270KW/367PS 04/201504/2016
Audi RS3 8V Sportback/Sedan 294KW/400PS 08/2017+

The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+. The size of the intercooler remains unchanged from the original version. Only the internal core design has been further optimised for the high power applications and guarantees optimal air flow and excellent cooling performance. For all power applications below the 600PS we recommend to use the standard version.

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16,5L/14,45Inch x 3,74Inch = 1006,9Inch³) and this offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi RS3 intercooler uses our award winning WAGNERTUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality TUBE and FIN intercooler cores with inside turbulators combined with cast aluminium endtanks optimised by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the crossmember form a stable unit and weighs only 14,1 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! 68mm (2,67Inch) in- and outlets.

OEM intercooler:
cooling surface 1024cm²(158,7Inch²)
charge-air-volume 8,2L (500,4Inch³)

WT EVO3 Competition:
cooling surface 1890cm² (293Inch²)
charge-air-volume 16,5L (1006,9Inch³)

Vehicle Fitment for this product

Please be aware, this list of compatible vehicles is taken from data provided by the supplier. It is recommended, if you’re unsure, to contact us first before placing an order.

• Audi > RS3 (8V 2015-2016) > RS3 (367ps) 2015-2016
• Audi > RS3 (8V 2017-2020) > RS3 (400ps) 2017-2020
• Parts > Cooling > Intercoolers

We’re providing you with an all in one, supply and fit, performance parts solution which is facilitated by our network of trusted, reputable Quattro-Tech sites across Cambridgeshire.

Any products ordered will be delivered to your chosen Quattro-Tech site at checkout for fitment.

A member of our team will be in touch with you directly, via phone or email, once you have completed your order to discuss a date and time for fitment at your chosen site location.

You will then receive an order confirmation email with the full details of your’ booking, including parts ordered, site location, date and time.

ORDER, ARRIVE AND DRIVE.
