Wagner Tuning – Audi RS4 B9 / RS5 F5 Performance Intercooler Kit – 200001162

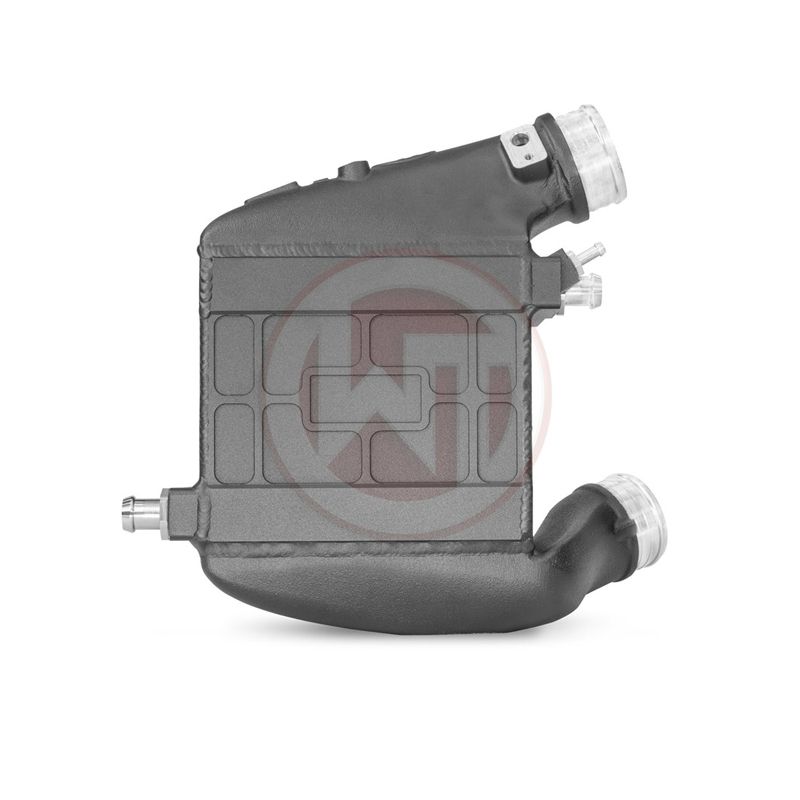

Our high-performance intercooler was specially developed for the demanding 2.9 liter V6 biturbo engine (VW EA839) of the Audi RS4/RS5 models. It replaces the standard water-cooled intercooler and offers you a multitude of advantages.

With our new performance intercooler core, measuring 222mm x 200mm x 120mm, we have increased the outer core volume by an impressive 185%. Due to the optimal ratio between the inner and outer cooling surface, we ensure maximum heat transfer and optimal internal air flow. The cast aluminium end boxes were designed in CAD and perfected with the help of CFD simulations. The result is outstanding cooling properties with minimal back pressure. Our high-performance intercooler is therefore also ideal for racing and ensures optimal cooling of the charged air with a significant increase in performance.

For a lasting and reliable cooling effect, all our WagnerTuning intercoolers are equipped with a heat-conducting anti-corrosion coating. The installation of the system is uncomplicated thanks to our detailed installation instructions and takes place in the plug & play process.

The advantages at a glance:
– Significantly improved cooling performance for optimal performance development
– Minimized back pressure for optimised performance
– More power and torque for a more intense driving experience
– Mechanical unloading of the turbocharger for a longer service life
– 100% compression strength for maximum reliability
– Easy and hassle-free installation using the Plug & Play method
– Up to 4 years warranty for a worry-free driving experience

Bring your Audi RS4/RS5 to a new level of performance with our WagnerTuning high-performance intercooler. Experience outstanding cooling performance and maximum performance at every race!

The performance intercooler kit fits the following models:
Performance CHARGE AIR COOLER KIT Audi RS4 B9 / RS5 F5

core dimensions stock intercooler:
220 mm x 100 mm x 85 mm
V = 1,87 Liter

core dimensions Wagner Tuning intercooler:
222 mm x 200 mm x 120 mm
V = 5,33 Liter (+185%)

Part number: 200001162

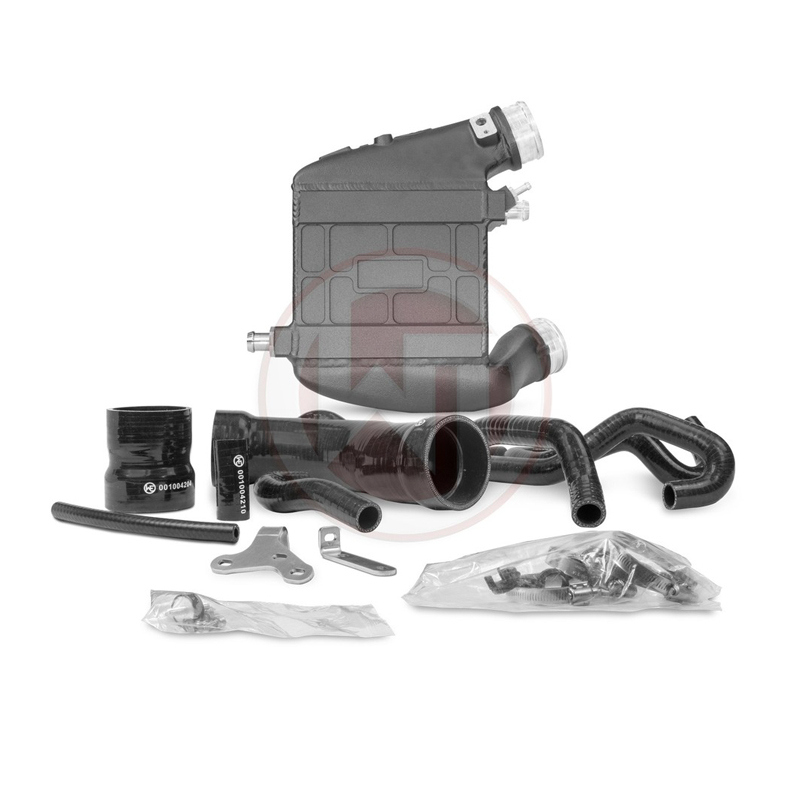

Kit comes with:
1 Intercooler
2 Silicone hose (air)
6 Silicone hoses (water)
1 Mounting material
1 Intstallation instruction

Vehicle Fitment for this product

Please be aware, this list of compatible vehicles is taken from data provided by the supplier. It is recommended, if you’re unsure, to contact us first before placing an order.

• Audi > RS5 (B9 2017-present) > RS5 (450ps) 2017-present
• Audi > RS4 (B9 2018-present) > RS4 (450ps) 2018-present
• Parts > Cooling > Intercoolers
